B - 3 KG DE CHARGE - MPP3 S

B - 3 KG DE CHARGE - MPP3 S

Description

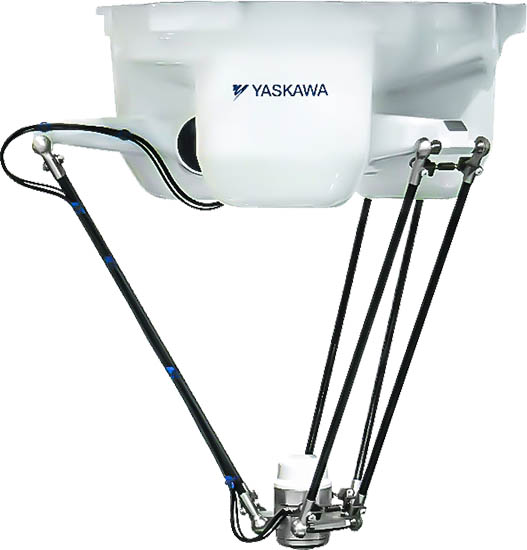

Due to the high torqueof the fourth axis, the so-called wrist axis,the MOTOMAN MPP3S moves payloadsof up to 3 kg at unprecedented speeds. This delta robot was developed for a wide spectrum of industries, such as food and beverage, pharmaceutical and the automotive sector.

Key benefits

  • ISO class 5 (with 100% speed) & ISO class 4 (with 50% speed), cleanroom rated
  • Protection classification IP67
  • Payloads with unprecedented speed:
    • 150 cycles per minute with3 kg payload
    • 185 cycles per minute with1 kg payload
  • Total stroke of 300 mm with a working range of 800 mm
  • High-precision, high-speedconveyor tracking
  • Maximum machine accuracy
  • Compact installation space: 684 mm diameter

Specifications

  • Payload (kg): 3
  • Maxi. reach P-point (mm): 800
  • Controlled axes: 4
  • Repeatability: +/- 0.1
  • Protection class (wrist): IP 67
  • Weight (kg): 95
  • Attachment methods: Ceiling
