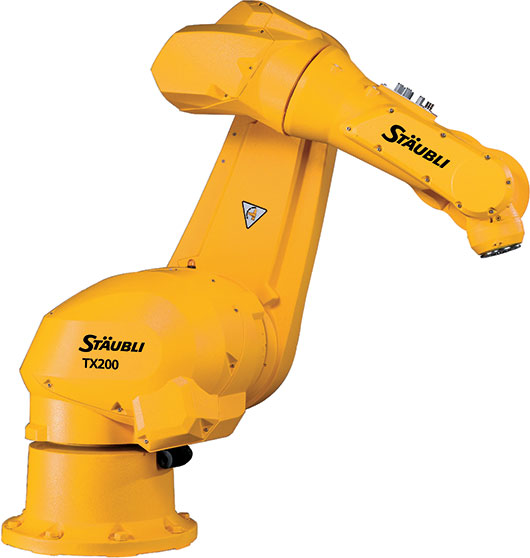

A - 100 KG DE CHARGE - TX 200
Description
|
Features |
Benefits |
|
Controlled by the new CS8C HP controller |
One unique range of controllers for all robots |
|
Rigid structure |
Better dynamic performance |
|
Mechanical design |
Precision, reliability and speed for cycle time optimization |
|
Large work envelope |
Optimum use of the work area, with a compact robot base that enables shelf mounting |
Specifications
- Maximum load capacity (kg): 130
- Reach at wrist (mm): 2 194
- Degrees of freedom: 6
- Repeatability: +/- 0.06
- Protection class: IP65
- Weight (Kg): 1 000
- Attachment methods: Floor / Ceiling
- Controller: CS8C HP
- Controller documentation: Download cs8ce.pdf
