A - 10 KG DE CHARGE - SIA 10F

A - 10 KG DE CHARGE - SIA 10F

Description

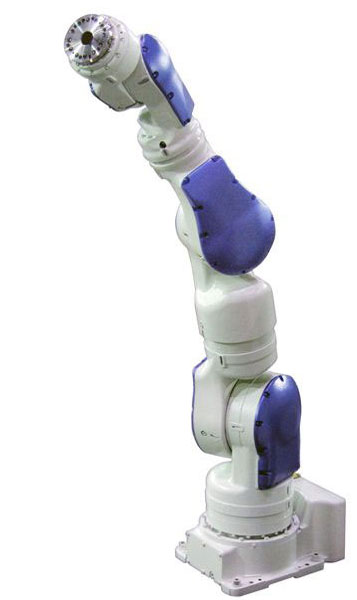

The SIA10F is a lean and powerful 7-axis single-arm robot ideal for automating operations such as assembly, inspection, machine tending and handling.

It's revolutionary design with high wrist performance and fully integrated supply cables, enables the SIA10F to work in confined spaces with an amazing freedom of movement. With a minimal footprint and high motion flexibility the SIA10F can be positioned out of the normal working area (i.e. floor-, ceiling-, wall-, incline- or machine-mounted) without limiting the motion range of any axis. To save valuable floor space the SIA10F can be mounted between machines, which also provides open access to the machines for maintenance, adjustment or testing.

The SIA10F uses the highly compact FS100 controller.

Specifications

  • Payload (kg): 10
  • Maxi. reach P-point (mm): 720
  • Controlled axes: 7
  • Repeatability: +/- 0.5
  • Weight (kg): 60
  • Attachment methods: Floor /Wall / Ceiling
  • Controller: FS 100
